With reversible tileable cover, Clapet valve and base. Available with Ø40 and Ø 50mm drain outlet. The versions KANIX And KA-ABS are available in lengths from 20 to 120cm (variable dimensions every 10cm). The version POXI It is available in 13cm and 15cm square versions. All versions are supplied with a waterproofing kit.
Connect the drain pipe, adjust the installation height and level taking into account the height of the frame and cladding.
Create 2 concrete supports high the Base and level. For dimensions greater than 40cm level with the screws provided.
Cement with a drainage slope towards the drain.

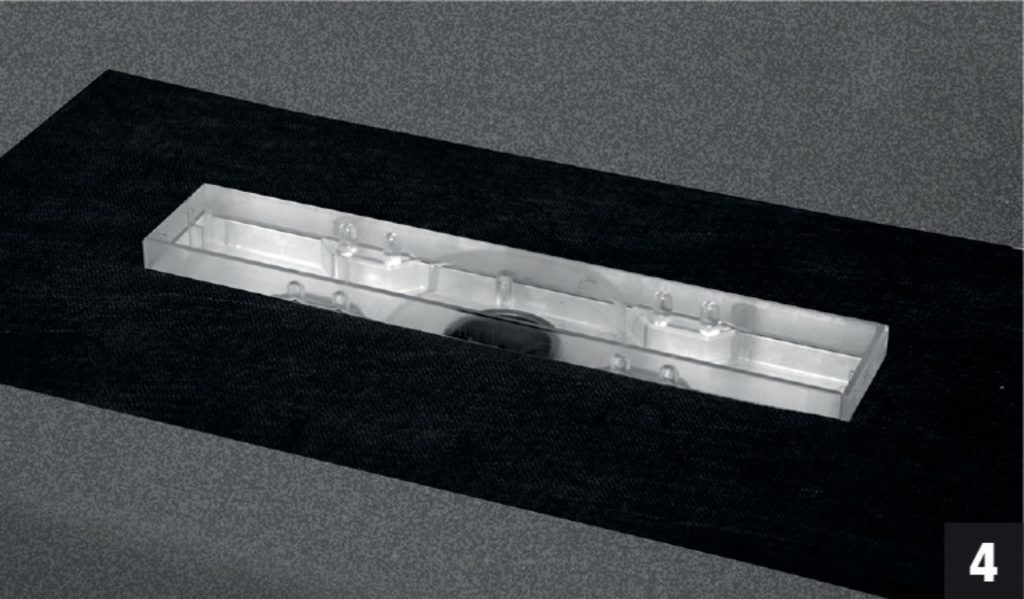

Place the double-sided tape and the waterproof sheet
Waterproof the affected surface.
Tile and insert the reversible lid.
If the water drains too slowly, it may be necessary to clear the drain of any dirt. Remove the cover and the Clapet valve
ATTENTION!
Clean with water and neutral soap. Do not use aggressive chemical agents.
